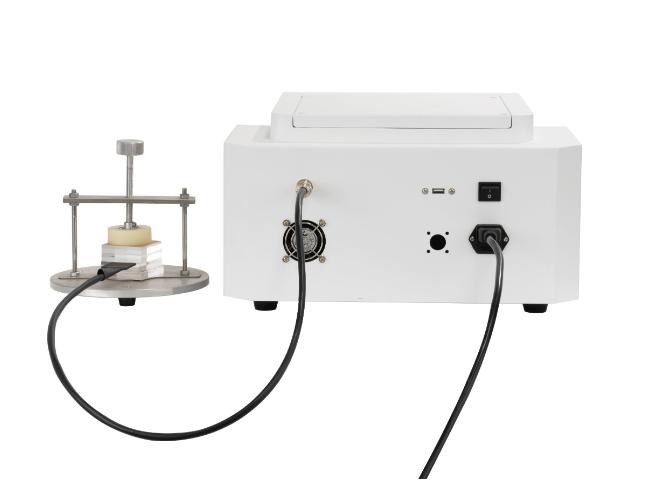

Thermal conductivity tester based on transient plane heat source method technology (TPS). With stable test performance and strong data processing and analysis capability, it can be used for the measurement of thermal conductivity properties of different types of materials.
Model:FTech-ISO 22007
Reference standard:ISO 22007-2 2008

1.Test range: 0.001-500W/(m*K)
2.Temperature range of probe measurement: -15ºC-130ºC.
3. Probe diameter: one probe 7.5mm; two probe 15mm
4.Accuracy: ±3%.
5.Repeatability Error: ≤3%
6.Measuring time: 5~160 seconds
7.Power supply: AC 220V
8.Power: <500w
9.Sample temperature rise: <15ºC
10.Test sample power P: No.1 probe power 0
11. Sample specification: No.1 probe sample (7.5*7.5*3.75mm) No.2 probe sample (15*15*7.5mm)
Note: No. 1 probe is measured by the thickness of thin low-conductivity materials. If the surface of the sample is smooth and sticky, the samples can be stacked.

Features
1. Wide testing range, stable testing performance, in the similar instruments, is in the leading level;
2. Direct measurement, test time 5-160s or so can be set, can quickly and accurately measure the thermal conductivity, saving a lot of time;
3. It will not be affected by the contact thermal resistance as the static method;
4. No special sample preparation, no special requirements for the sample shape, lumpy solids only relatively smooth sample surface and meet the length and width of at least twice the diameter of the probe can be;
5. Non-destructive testing of the sample means that the sample can be reused;
6. The probe is designed with a double helix structure, combined with a proprietary mathematical model that uses core algorithms to analyse and calculate the data collected on the probe;
7. The structure of the sample stage is cleverly designed and easy to operate, suitable for placing samples of different thicknesses, while being simple and aesthetically pleasing;
8. The data acquisition on the probe uses an imported data acquisition chip, which has a high resolution and can make the test results more accurate and reliable;
9. The control system of the host uses an ARM microprocessor, which is faster than the traditional microprocessor, improving the system's analytical processing capability and making the calculation results more accurate;
10. The instrument can be used for the determination of thermal physical property parameters of lump solids, paste solids, granular solids, colloids, liquids, powders, coatings, films, thermal insulation materials and so on;
11. Intelligent man-machine interface, colour LCD screen display, touch screen control, convenient and simple operation;
12. Powerful data processing capabilities. Highly automated computer data communication and report processing system

1.  When get official order, equipment layout drawing and confirmation
2. Remote video training, installation guiding, trubleshooting by free.
3. On site training, installation guiding, all charges training fee+ traffic, hotel, board and lodging, Visa which provided by customer or paying.
4. 1 year warranty
5. Permanent software updated.
